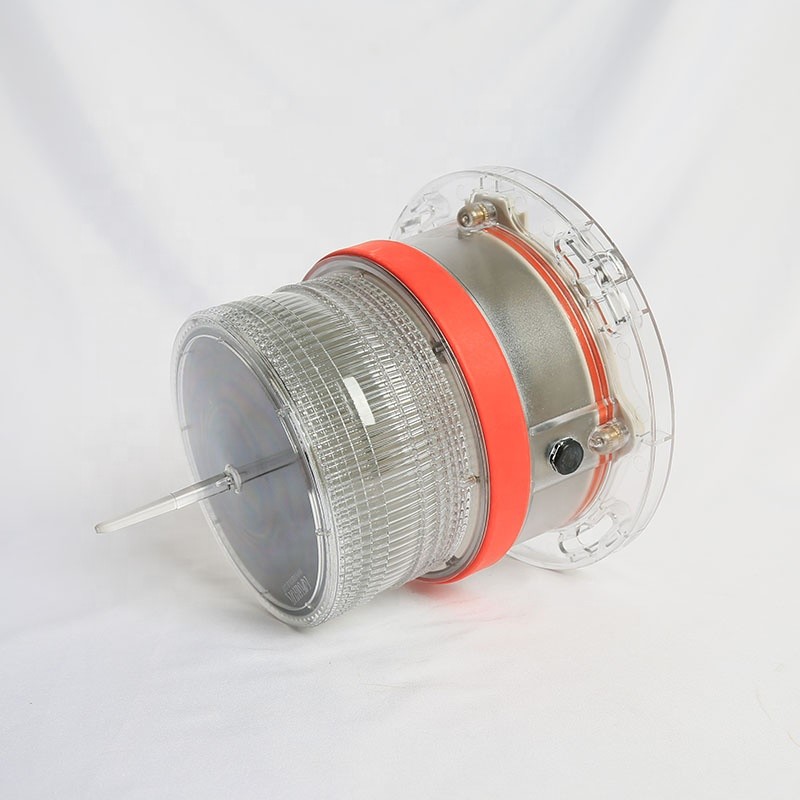

2.5nm Solar Powered Led Marine Navigation Light
GSM remote control.
GPS ( optional).
Based on LED technology, its color complies to IALA Recommendations
E-200-1.
Lamp shade, lamp body integration design, IP68.
PC housing, UV resistance, shockproof and corrosion resistance.
With bird spike.
256 kinds of flashing rate are available, comply with IALA.
* Based on LED technology, its color meets IALA Recommendations
E-200-1 requirements.
* PC housing, lamp body integration design, to IP68 protection level.
* PC material, anti-UV, anti-vibration, corrosion-resistant, with
anti-bird device.
* 256 kinds of light quality adjustable, in line with IALA
requirements.
* Adjustable light intensity, light control automatically
adjustable switching illuminance threshold.
* Work stability, low maintenance costs.
Specifications
| Light Characteristics |
| Intensity | 10cd |
| Visible Range | >2 .5nm |
| Available colors | Red, amber, green, blue, white |
| Vertical degree | >9 ° |
| Horizontal degree | 360 ° |
| Light source | LED |
| LED life | ≥100,000 hrs |
| Electrical Characteristics |
| Autonomy | >20 days(12hour darkness,12.5%duty cycle) |
| On/off level | 300 lux±100lux |
| Flashing rate | complies to IALA Recommendations, total 256 available flashing rate(available
steady burning) |
| Power Supply |
| Solar module type | Multicrystalline |
| Output | 1.8 Watts |
| Battery type | High grade NiMH-Environment friendly |
| Battery capacity | 3.6V/8 AH |
| Physical Characteristics |
| Integrated housing | UV resistance PC |
| Waterproof | IP68 |
| Weight | 1.7 KG |
| Ambient temperature | -30℃ ~ +70℃ |
| Size | H: 170mm, D: 228mm |
| Mounting dimension | Φ200-4XM6 |
| Customized | External power or Infrared control |
Qingdao Glod shark Marine Electric Co.,Ltd is located in famous
Chinese town-Qingdao,East China Sea,is 30km away from Wenzhou
International Airport,and 10km form YueQing high speed rail
station.The town has area of 11.86 square kilometers,7 kilometers
long coastline,with deep harbor and good geographical
conditions.There are seven 10k-ton dock and five 500-ton
dock,”Famous Town in Eastern OuJiang Area”in history.Unique natural
environment,rich and dignfied history and culture,a complete range
of industrial base,improve infrastructure and convenient traffic
conditions,those factors provide us with a superior development and
production environments,and contribute us to create the most
suitable for the needs of users.
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port
receiving;
3. Customers specifying freight forwarders or negotiable shipping
methods!
4. Delivery Time: 3-7 days for samples; 10-15 days for batch goods.
Payment Terms
1. Payment: T/T, L/C; 30% deposits; 70% balance before delivery.
2. MOQ: 10pcs
3. Warranty : 18 month
4. Package Informations: Depends on the volume of goods.
Q:What Is the Warranty for the light?
A:For the lamp flxture,we have 18 month warranty. We are confident
of our product, usually If you find the light is out of work,please
check whether the bulb is broken.
Q:How about the Water-proof function?
A:Considering the the satuation of navigation, when we design and
develop a lamp or connector, we will test and inspect several times
to make sure all of them have a wonderful water-proof
performance.Almost of our product is IP 56.
Q:Will your light works on a dimmer switch?
A:Except few types, such as the chart light, the reading light
which are used in cabin has the dimmerable function,
others(navigation signal light, fluorescent light)are without the
dimmerable function. But we can provide different power illuminant
for your selection.
Q:Does your light support AC/DC?
A:Yes, our light fixture support both alternatlong current and
direct current:
AC: 12V 24V
DC: 110V 22V 380V 440V
Q:What is the AC Voltage tolerance for our light?
A:Their AC voltage tolerance is+/-10%.
Q:Will you provide sample?
A:Yes, we can provide sample, but the courier fees should payed by
collector.
Q:What Is the MOQ?
A:Our MOQ=1O PCS.
Q:How about the payment?
A:Payment term: T/T or L/C, 30% deposits; 70% balance before
delivery.
Q:IS there cheap shipping cost to import to our country?
A:For small order,express will be best.And for bulk order,sea ship
way is best but take much time.For urgent orders,we suggest via air
to airport plus our ship partner send to your door.
Q:Can we get support if we have our own market position?
A:Please inform us your detailed mind on your market demand,we will
discuss and propose helpful suggestion for you,to find the best
solution for you.
