48V 60V 3.6HP 5.0HP 8.0HP 10HP Electric Outboard Motor Boat Engine For Yacht

Mode : 48V 3.6HP

• Rated power: 800W
• Staring system:Accelerated start
• Motor : Brushless motor
• Rated voltage(V) : 48
• Rated speed(r/min) : 3000
• Rated current (A) : 18
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Maximum speed(KM/H) : 13
• Overall LxWxH(mm): 365x220x920
• Weight:11KG
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):420
• Battery recommendation:Selection of 30-120A safe storage battery maxium power sustainable 2-8 hours

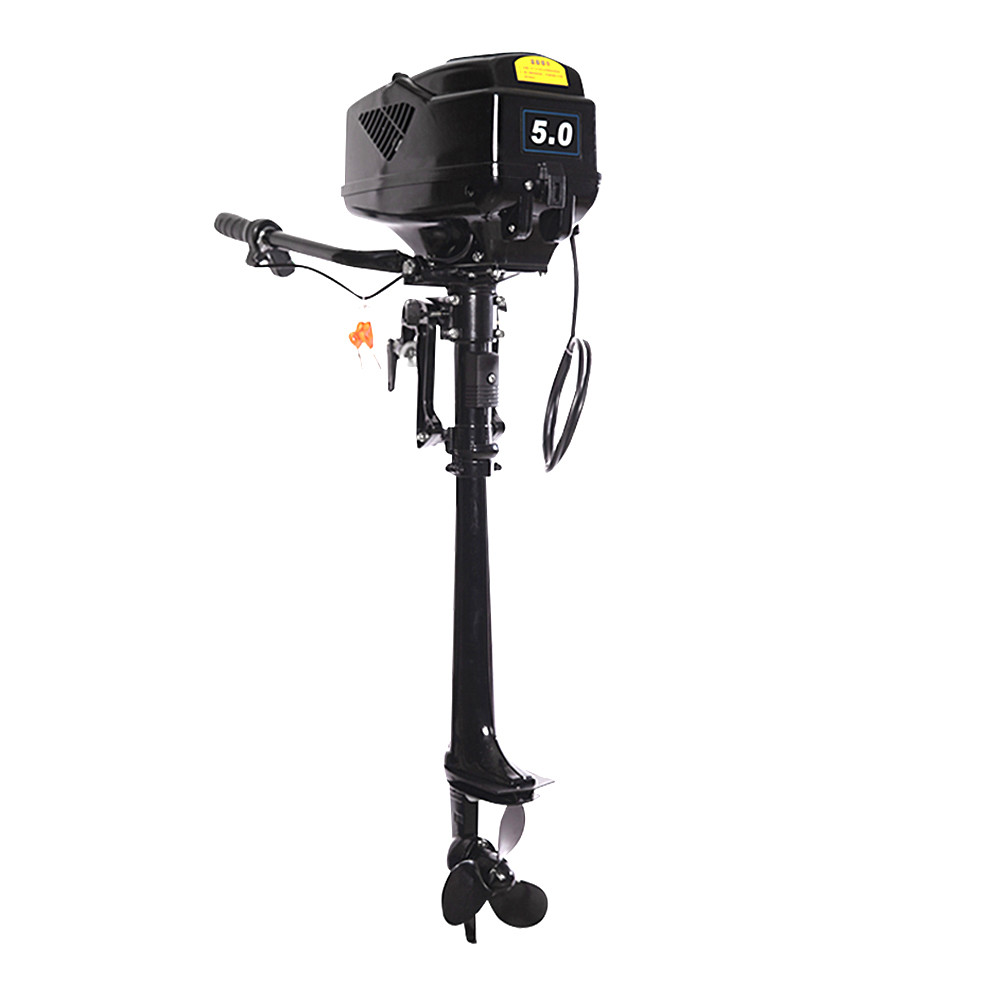

Mode : 48V 5.0HP

• Rated power: 1200W
• Staring system:Accelerated start
• Motor : Brushless motor
• Rated voltage(V) : 48
• Rated speed(r/min) : 3000
• Rated current (A) : 25
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Maximum speed(KM/H) : 18
• Overall LxWxH(mm): 365x220x920
• Weight:12KG
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):420
• Battery recommendation:Selection of 30-120A safe storage battery maxium power sustainable 2-8 hours

Mode : 48V 8.0HP

• Rated power: 2200W
• Staring system:Switch knob added
• Motor : Brushless motor
• Rated voltage(V) : 48
• Rated speed(r/min) : 3000
• Rated current (A) : 50
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Manipulation mode: Back
• Rod length(mm) : 910mm
• Weight:14KG
• Total height(mm):1320mm
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):381-508
• Battery recommendation:Selection battery with a capacity of over 120AH

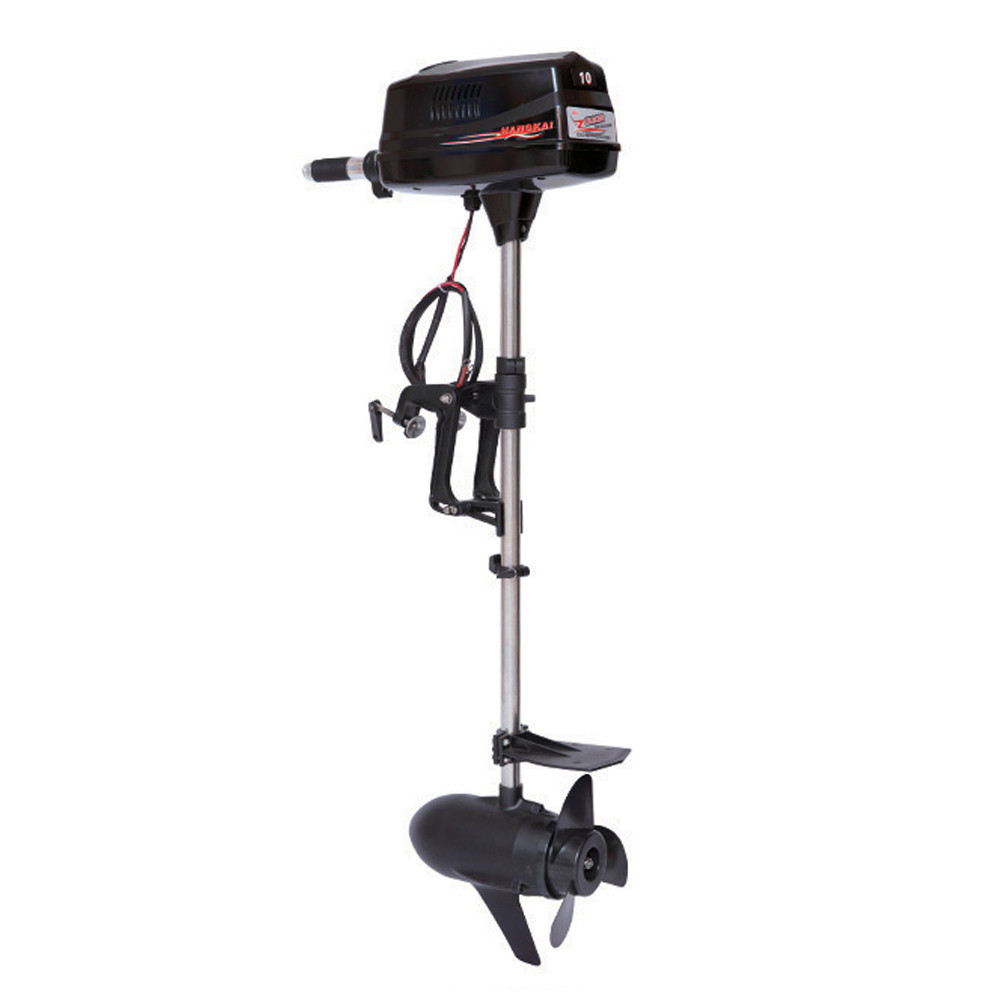

Mode : 60V 10HP

• Rated power: 2200W
• Staring system:Switch knob added
• Motor : Brushless motor
• Rated voltage(V) : 60
• Rated speed(r/min) : 3000
• Rated current (A) : 38
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Manipulation mode: Back
• Rod length(mm) : 910mm
• Weight:14KG
• Total height(mm):1320mm
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):381-508
• Battery recommendation:Selection battery with a capacity of over 120AH
