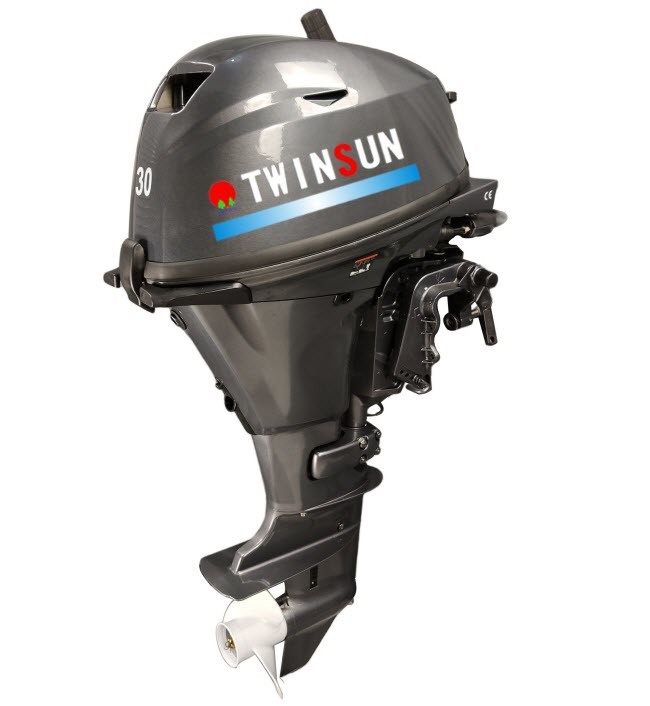

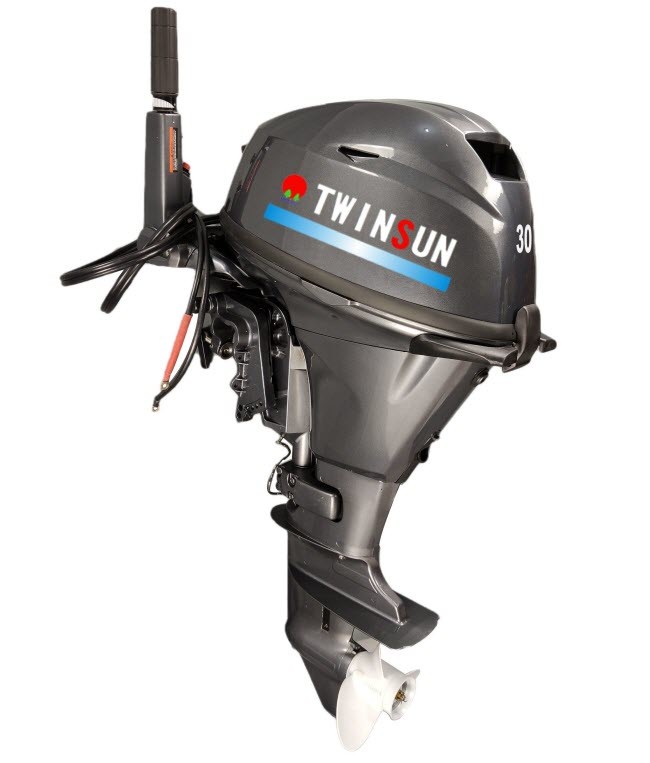

30HP Outboard Motor 4 Stroke Short Shaft Electric Start Outboard
Engine Outboards 30HP Boat Motor 30HP Boat Engine
Overall length | mm(in.) | 1001(39.4) |
Overall width | mm(in.) | 427(16.8) |
Overall heigth | mm(in.) | 1080(42.5) |
Transom heigh | mm(in.) | 567(22.3) |
Weight | kg | 61 |
Full throttle operating range | r/min | 4500-5500 |
Maximum output:kw(HP)@r/min | | 22.1(30)@5000 |
Idling speed (in neutral) | r/min | 900-1000 |
Engine type | | OHC |
Cylinders | | 2 |
Displacement | cm³ | 526 |
Bore x stroke | mm(in.) | 65x75(2.62x2.92) |
Ignition system | | CDI |
Control system | | Tiller |
Starting system | | Manual & electric start |
Gear positions | | Forward-neutral-reverse |
Gear ratio | | 2.08(27/13) |
Trim and tilt system | | Nanual tilt |
Integral fuel tank capicity | L | / |
Separate fuel tank capicity | L | 24 |
Maximum fuel waste | L/h | 5.2 |
Engine oilcapacity/withoutoilfilter | L | 1.8 |
Gear oil capacity | ML | 250 |
Propeller options* | in | 3x9 1/4"x11" |
Qingdao gold shark grows up quickly and powerfully. We have our own
design team, manufacture team including the workshop, marketing and
sales department. We mainly focus on second innovation research and
development basing on the latest international electronic
intelligence technology, manufactures and sells electronic
intelligent control products and peripheral accessories.
The vision of gold shark is to maximize the use of latest
international technology and to change life by it. gold shark 's
products can be applied in electric skateboards, electric vehicles,
scooters, car models, ship models, robots and industrial equipment
and other industries.
cylinder liner, piston, piston ring, engine valve, engine bearing,
oil nozzle, oil seal, oil pump, fuel pump, water pump,
turbocharger, and so on
our products have exported many countrys .We are also the supplier
for China DEUTZ/KHD, CUMMINS, ISUZU and LOVOL as well as MTU, KKK
Germany
We also supply the china products which are made by joint venture
with international engine and engine parts ,for example Elring,
Bosch, Payen, Federal-mogul, TP, Holset, S.Valeo, Garrett,
Borg-Warner, KKK, ZF, Eaton, Fuller, GKN, Thomson products which
made in China under strict quality control and international
quality standards.
We aim to be a top class supplier for worldwide OEM and
aftermarket!
hope build good business relationship with all company which is do
business in this field.
Q1.Where is your factory?
We have two factories. One is for lost wax casting products in
Dongying City,another is for CNC machining process , laser cutting
etc service in Dongying City. More than 300people .
Q2.What material do you have?
SS304/SS316/SS316/Duplex 2205/ Carbon steel/Alloy steel/Aluminum
Q3.What surface treatment for the products your factory can offer?
Mirror, Chrome, Satin, Brushed ,Power coated, Electrolytic
polishing
Q4.Can you provide sample for us?
Yes, free sample is available
Q5.Can you do the any metal products according to our design?
Yes, but the drawing or sample is needed
Q6. How do you ensure quality control?
We ensure the quality control by 2 steps: 1)after finish, our
workers will check it one by one. 2)our package department will
check before they pack.
Q7.How do you ship the goods to us?
We have the forwarder cooperated with us for 11 years, they can
deliver the goods to you in very short time with competitive
price,and you can ship by your own agent as your convinence
