Hydraulic Outboard Steering System Cylinder / Pump / Tube For 300
Hp
| Item No. | SF80722-90 | SF80722-150 | SF80722-300 |
| Pumps | NR90 | NR150 | NR300 |
| Capacity CM3 | 16 | 18 | 27 |
| N° of pistons | 5 | 7 | 7 |
| Max Pression Bars | 68 | 68 | 68 |
| Turns of wheel | 4.3 | 6.3 | 5.3 |
| Cylindars | MR90 | MR150 | MR300 |
| Tube I.D (mm) | 25 | 32 | 35 |
| Rod I.D (mm) | 14 | 15.8 | 18 |
| Output force/kgf | 232 | 400 | 470 |
| Stroke (mm) | 200 | 198 | 214 |
| Volume (cc) | 73 | 118 | 141 |
| Application | up to 90HP | up to 150HP | up to 300HP1 |
The steering system in accordance with the (Rules for
classification of ships) on the steering gear in the requirements
for the design, the use of open-type valve hydraulic system and
swing cylinder piston to push the rudder mechanism, with avariety
of valve type (such as HD-S type) or autopilot servo steering
instrument to match the ship's steering control system components,
and undertake the task of changing and maintaining the course of
the ship.
This kind can be divided into 3 types:
MHS90----can be used for 90hp outboard engine
MHS150--can be used for 90-150hp outboard engine
MHS300--can be used for 150-300hp outboard engine

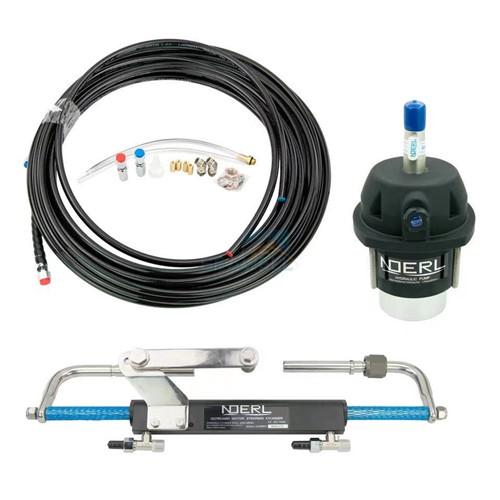

The standard of form a complete set: 8m hydraulic pipe, fuel
cylinder, fuel pump and connecting accessories. Steering wheel
optional (random)
The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY
/ MARINER, NISSAN.
Quality warranty: 12 months
The steering gear is characterized by: pushing the rudder mechanism
adopts swing cylinder piston, simple compact structure, light
weight, easy installation process, valve assembly, integration and
a high degree of hydraulic components are domestic famous brand,
reliable quality, replacement convenient, hydraulic system uses the
open system, the hydraulic system simplified.
In addition, the possible failure of the site, located a sound and
light alarm devices, thereby improving steering vitality.
