Marine Switch Panel Yacht Cabin Refit Control 12-24v Universal 4
Way Switch Panel Single Touch Panel
Product name: Four single touch panel Product model: CS-976A1
Product net weight: 251G Product gross weight: 292G Product size:
15 * 9 * 10.2CM Packing size: 13.1 * 12.5 * 22.6CM Opening size:
11.9 * 4.7CM Product Color: Black Light color: white light when
power on, blue light when switch on Input voltage: DC12-24V
Waterproof rating: IP65 Related Certificates: CE Product
accessories: self-tapping screws * 6, function stickers * 3,
scratch-resistant gaskets * 1
Product advantages |
1 | The product is a 4-position single-touch switch panel, including 4
switches, which can control the switching states of 4 electrical
appliances at the same time. |
2 | The input voltage of the product is 12 / 24V, all boats and
vehicles can be installed and used, and the use range is very wide |
3 | The product panel is resistant to high and low temperature, flame
retardant and environmentally friendly materials, and can be used
in environments with a minimum temperature of -25 ° and a maximum
temperature of 80 ° |

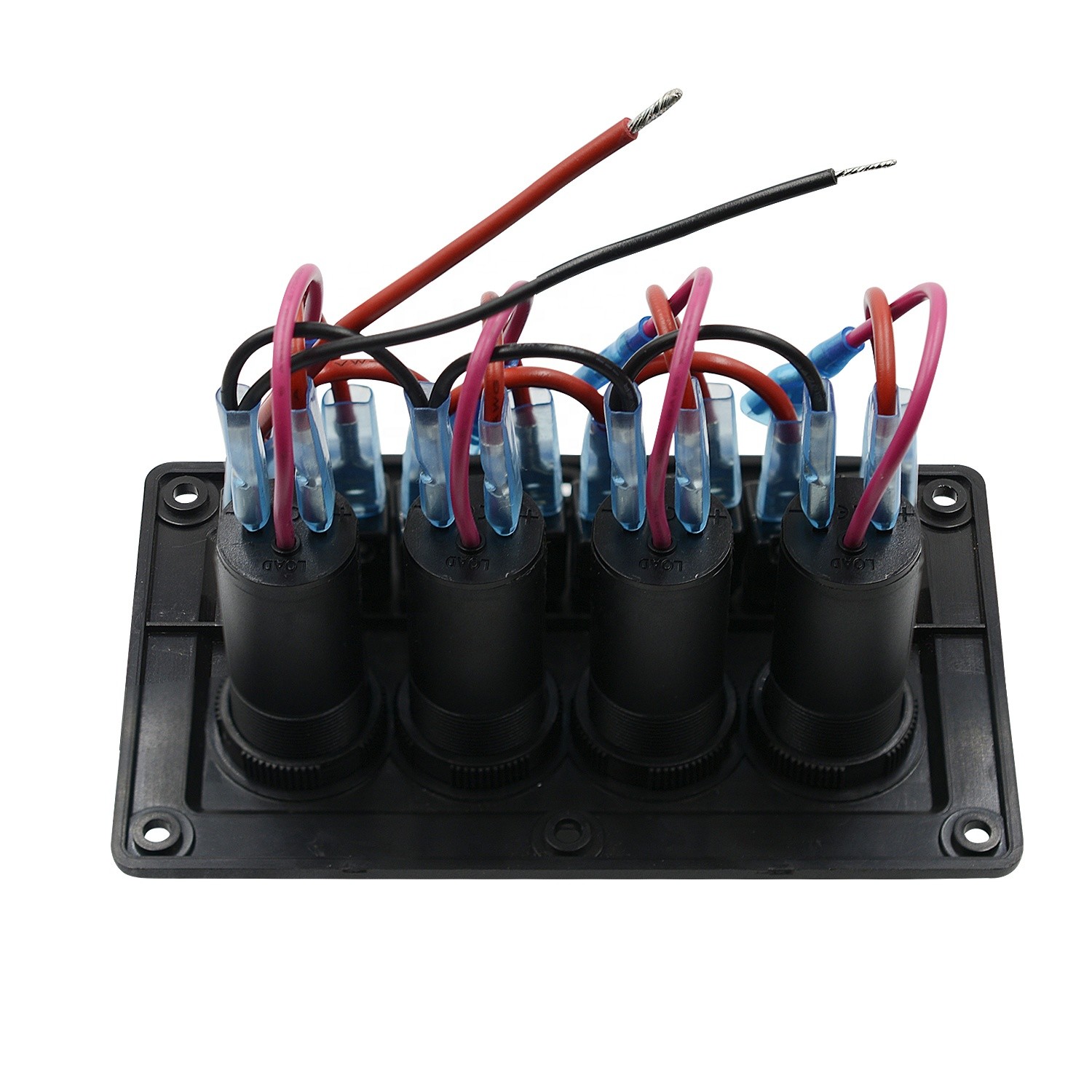

4 | The product has an overload protector. When a single
switch-controlled consumer exceeds the maximum input current of the
corresponding overload protector, it will automatically power off
without causing any damage to the consumer. After the overload
protector is pressed again, Electric appliances installed with
corresponding current can continue to be used |
1, Unique 8 Gang Design: the switch panel can control 8 led lights
& accessories from one convenient place. With high sensitivity,
stability and strong anti-interference ability, you can customize
your own switch panel with 45 Pcs self-adhesive labels.
2, Safety Protection: with an integrated overload protection system
and resettable 40 Amp circuit breaker, it will automatic disconnect
when the temperature is too high. Reverse polarity protection,
over-voltage protection and over-current protection, providing all
connected lights & accessories safety.
3, Input Voltage: 12V / 24V DC. Easy to install, plug & play
4, Suitable for all 12V/24V DC power application such as car,
truck, jeep, off-road, ATV/UTV, boat, yachts and Caravans etc.
Switch Rating: 12V 10A /24V 10A DC
Panel Rating : Maximum Cumulative Amp:45A
Touch Switch[ON-OFF]×8
Circuit Breakers:10A×8
Stainless Steel Screw ×6
Nitrile Rubber Gasket[2.5mm] ×1
Electrical wiring[ UL/1015]
Size of Panel:90.0mm×270.0mm
Size of Hole: 55.0mm×240.0mm
Certification:CE IP65
Product advantage:
[1] The product is a 8-position single touch switch panel with 8
switches, which can control the switching states of 8 electrical
appliances at the same time.
[2] The input voltage of the product is 12 / 24V, all boats and
vehicles can be installed and used, and the application range is
very wide .
[3] The product panel is resistant to high and low temperature,
flame retardant and environmentally friendly materials, and can be
used in environments with a minimum temperature of -25 ° and a
maximum temperature of 80 °.
[4] The product has an overload protector. When the consumer
controlled by the separate switch exceeds the maximum input current
corresponding to the protector, it will automatically power off
without causing any damage to the consumer. After the overload
protector is pressed again, Consumers injected with corresponding
current can continue to use.
Q1. What is the lead time ?
Most of them are "Ready to Ship " item.
25-30days for most regular order.
Q2. Are you offering OEM/ODM service ?
Yes, we have much experience of offering OEM/ODM.
Q3. What's your payment term.
We prefer T/T.
For regular orders, 30% in advance, 70% against BL copy
Other payment term also negotiable.
Q4. Can I have an ABS corner mounting bracket as sample?
Yes, of course. Samples are available with freight collected.
Actually, no MOQ for any order.
Q5. Do you have MOQ?
Actually, no MOQ for any order.
Q6. Can I get a better price?
Prices are different for different order quanlity and specific
demands.
We'd like to offer you very good price to help you enlarge the
market share.
