Outboard Engine Hydraulic Steering System Hydraulic Steering System
90hp-300hp
Hydraulic Outboat Marine Steering Wheel Steering Gear System for
90hp-300hp
The steering system in accordance with theon the steering gear in
the requirements for the design, the use of open-type valve
hydraulic system and swing cylinder piston to push the rudder
mechanism, with avariety of valve type (such as HD-S type) or
autopilot servo steering instrument to match the ship's steering
control system components, and undertake the task of changing and
maintaining the course of the ship.
This kind can be divided into 3 types:
SINO96912-90----can be used for 90hp outboard engine
SINO96912-90-150--can be used for 90-150hp outboard engine
SINO96912-150-300--can be used for 150-300hp outboard engine

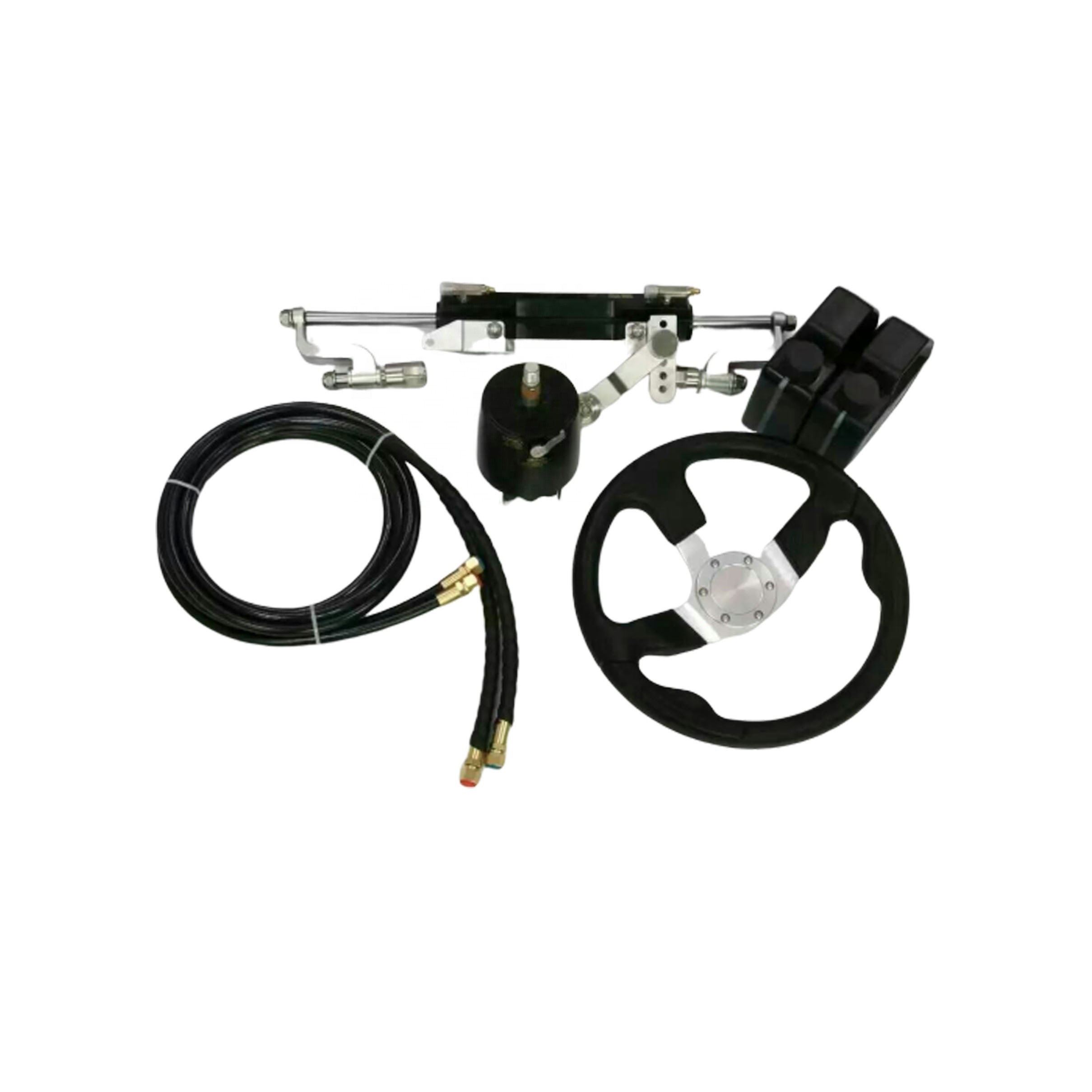

The standard of form a complete set: 8m hydraulic pipe, fuel
cylinder, fuel pump and connecting accessories. Steering wheel
optional (random)
Quality warranty: 12 months
This kind can be divided into 3 types:
MHS90----can be used for 90hp outboard engine
MHS150--can be used for 90-150hp outboard engine
MHS300--can be used for 150-300hp outboard engine
| USAGE | * Designed and developed especially for marine use; |
| Application | * Mainly applied in mechanical/manual steering for yachts,fishing
boats and other waterborne vehicles; |
| Accessory | * Combined with steering cable series 160,end C,all stainless steel
cable output ends; |
| Features | * Made in zinc alloy,corrosion resistant,ergonomically
designed,easy to install,compact for mounting; |
| Cable Length | * With cable 5m; |
| Enfine (HP) | * For use with marine ourboard engines up tp 90hp to 300
|
The steering system in accordance with the (Rules for
classification of ships) on the steering gear in the requirements
for the design, the use of open-type valve hydraulic system and
swing cylinder piston to push the rudder mechanism, with avariety
of valve type (such as HD-S type) or autopilot servo steering
instrument to match the ship's steering control system components,
and undertake the task of changing and maintaining the course of
the ship.
This kind can be divided into 3 types:
MHS90----can be used for 90hp outboard engine
MHS150--can be used for 90-150hp outboard engine
MHS300--can be used for 150-300hp outboard engine
The standard of form a complete set: 8m hydraulic pipe, fuel
cylinder, fuel pump and connecting accessories. Steering wheel
optional (random)
The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY
/ MARINER, NISSAN.
Quality warranty: 12 months
The steering gear is characterized by: pushing the rudder mechanism
adopts swing cylinder piston, simple compact structure, light
weight, easy installation process, valve assembly, integration and
a high degree of hydraulic components are domestic famous brand,
reliable quality, replacement convenient, hydraulic system uses the
open system, the hydraulic system simplified.
In addition, the possible failure of the site, located a sound and
light alarm devices, thereby improving steering vitality.

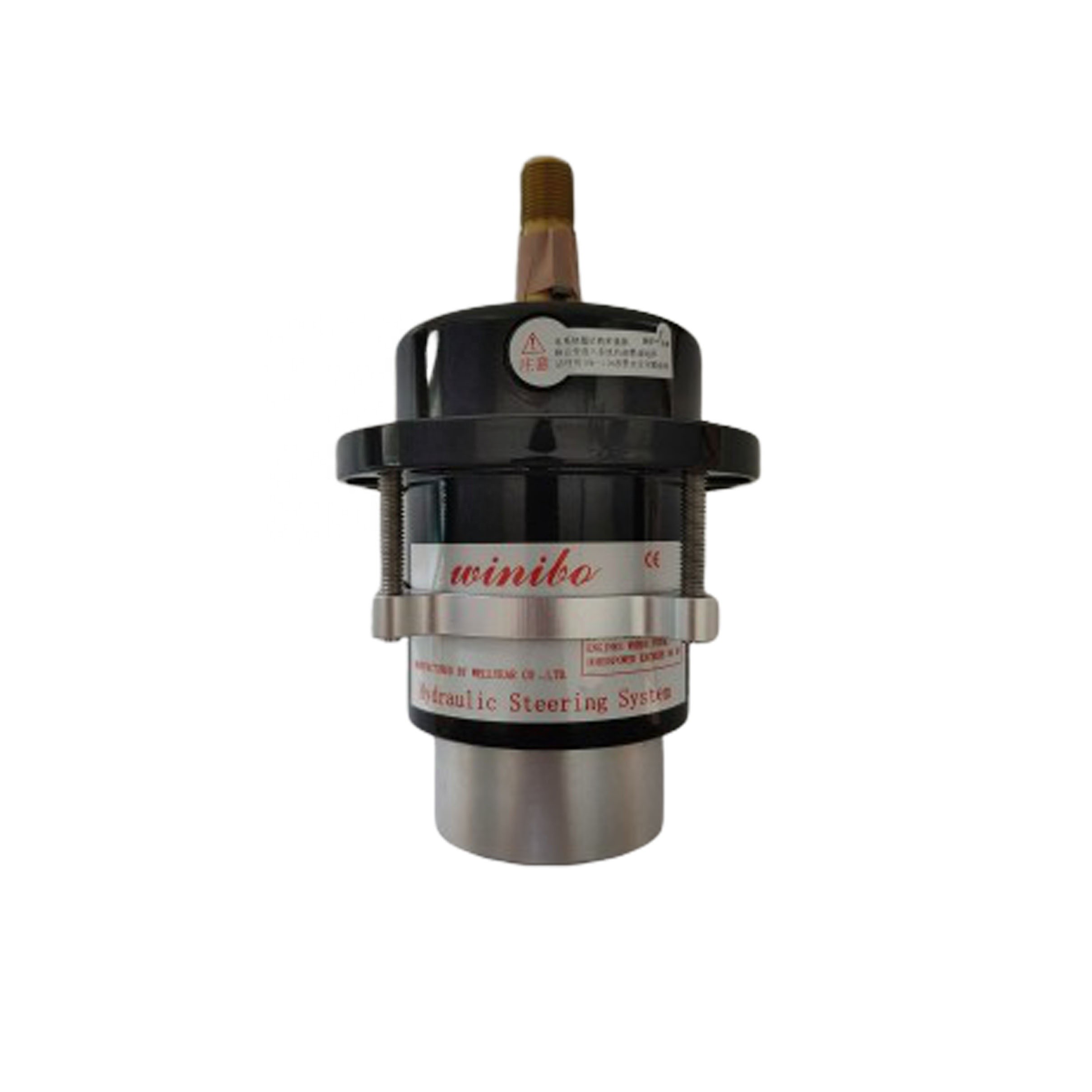

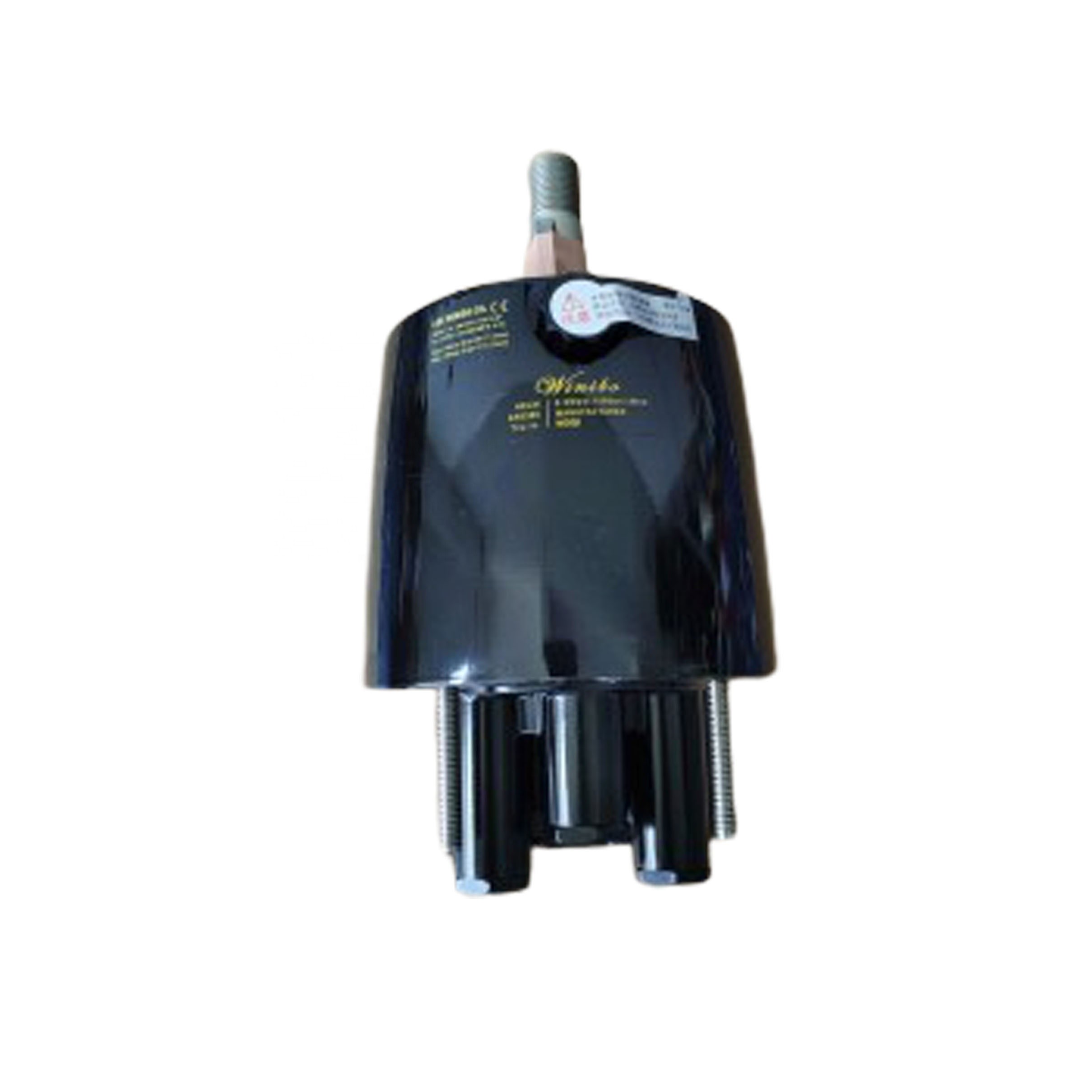

Hydraulic Steering gear system(90HP/150HP/300HP)
* Compact design
* Front Mounting
* Ball bearing piston race, 7 pistions
* In built lock valve (70bar) for positive rudder lock
* 3/4'' tapered stainless steel shaft for strength and durability
* Cast iron cylinder rotor for greater durability and longer life
* 1/4'' NPT fitting for 3/8'' tube
* Wheel size within 500mm is available for this model
Cylinder Specification
* Volume: 137cc / 8.4cu.in
* Output force: 470kg / 1036lbs
* Inside diameter: 35mm / 1-3/8''
* Bore shaft length: 550mm / 21.6''
